Merlin, the CPU, and the Commodore 64

I recently put together two Merlin projects that are really one idea in two forms.

The first is lets-go-merlin, a Go emulator for Merlin - The Electronic Wizard. It runs the original Texas Instruments MP3404 ROM on a TMS1100 interpreter, and that same core is available as a browser version.

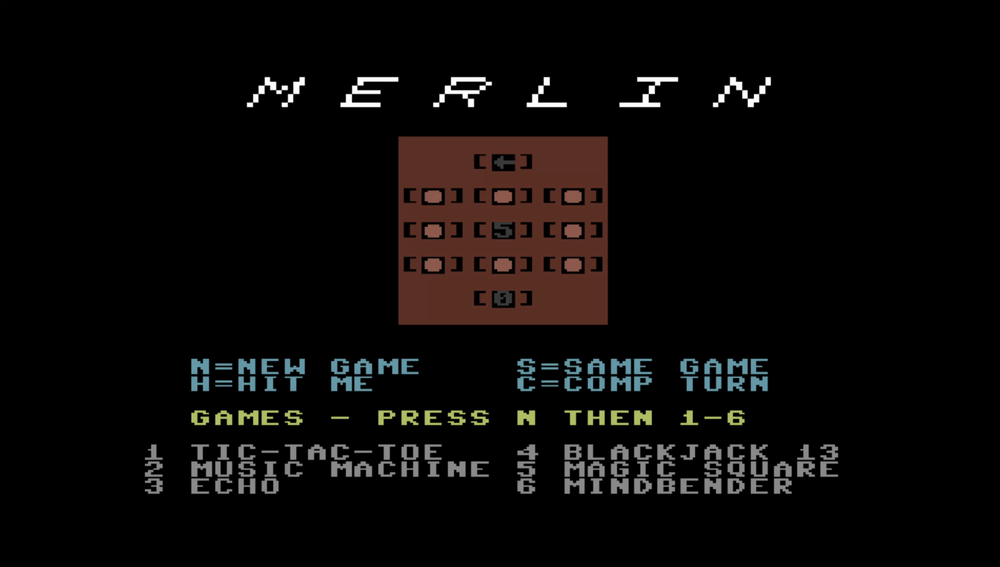

The newer one is merlin-c64, which runs Merlin on the Commodore 64.

That sounds like a remake, but it is not the interesting part. The fun part is that the C64 version is still running the original Merlin program. The C64 is pretending to be the TMS1100. A 6502 assembly interpreter fetches Merlin’s real instructions, updates the emulated chip state, and lets the original engine decide which lights turn on, which buttons mean what, and which game logic runs next.

Make the CPU work

The thing I like about this approach is that it avoids writing a bunch of duplicative code to make something look like Merlin.

I did not need to rewrite tic-tac-toe, Echo, Music Machine, Blackjack 13, Magic Square, or Mindbender for the C64. I needed the CPU behavior to be good enough that the original Merlin ROM could run. Once that boundary is right, the behavior emerges from the program that was already there.

That changes the shape of the work. Instead of asking “how do I recreate this game?”, the question becomes “what does this CPU actually do, and can I make another machine execute those rules faithfully?”

That is a much more interesting question to me.

It also makes the limitations honest. The real Merlin TMS1100 ran at about 350 kHz, which works out to roughly 58,000 instructions per second. A C64 has a faster headline clock than that, but its 6502 is not a TMS1100. It has to spend many 6502 instructions to emulate one Merlin instruction. The result is that the C64 version runs in slow motion.

That is not a failure of the idea. It is the tradeoff made visible. The C64 can run the real engine, but it cannot do it at full speed without help. Some parts, like fixed startup audio, can be handled more cleverly through the SID. Other parts stay slow because they are driven by the emulated ROM’s timing loops.

Testing the port

The part I care about most is the validation loop.

The Go version already gives me a clean TMS1100 core. For the C64 version, I ported that interpreter into 6502 assembly, but I did not want to trust “it seems to work” as proof. So merlin-c64 has a lockstep test.

The test assembles the C64 program, loads it into a neutral 6502 emulator, and runs it one TMS1100 instruction at a time. After each emulated TMS1100 instruction, it compares the C64 interpreter’s state against the Go core running the same Merlin ROM.

Registers, program counter, page state, output latch, and the LED-driving R lines all have to match. If they drift, the test fails at the exact step where the port stopped behaving like the reference.

That is the payoff of separating the idea from the target machine. The Go core is not just a web toy. It becomes a reference implementation. The C64 version is not just hand-written assembly. It is a target backend that has to prove it still implements the same CPU.

The same pattern applies elsewhere

This is the same technique I like in the 6502 work too.

You can run the 6502 simulator separately in tests, validate the assembled code against the behavior you expect, and then move that code onto a real C64 or C64-compatible device with a lot more confidence. The simulator is not the end product. It is a controlled environment for proving the small parts before the hardware gets involved.

That matters because old systems are very constrained. The constraints are not a reason to romanticize them. They are useful because they make the machine boundary sharp. You can see where the CPU ends, where the display starts, where timing leaks into sound, and where a shortcut stops being faithful.

I do not think of this as being stuck in the past. I think of it as using small, inspectable systems to practice a discipline that still matters: define the contract, make the implementation obey it, test it against an independent reference, and then run it somewhere less forgiving.

In this case, “somewhere less forgiving” happens to be a Commodore 64. That is part of the charm, but not the whole point.

The point is that if the CPU works, the original program comes with it.
